In the vast and complex world of industrial piping systems, power generation, and process engineering, there are critical components that work tirelessly behind the scenes to ensure safety, efficiency, and longevity. Among these unsung heroes are expansion bellows, flexible connectors that are fundamental to managing movement, vibration, and stress. This article delves deep into the world of expansion bellows, exploring their function, types, applications, and the critical importance of their proper selection and maintenance.

What Are Expansion Bellows and Why Are They Crucial?

Expansion bellows, also known as metal bellows or flexible bellows, are flexible elements specifically designed to absorb dimensional changes in pipelines, ducts, and vessels. These dimensional changes can be caused by thermal expansion and contraction, pressure, mechanical vibration, or the settlement of supporting structures.

Imagine a long pipeline carrying superheated steam. As the steam heats the pipe, the metal expands, potentially causing the pipeline to buckle, bend, or place enormous stress on anchors and supports. Without a way to accommodate this movement, the system would eventually fail, leading to catastrophic leaks, downtime, and costly repairs. This is where the expansion bellow comes in. By strategically placing these flexible units, engineers can safely direct and absorb these forces, protecting the entire system’s integrity.

The primary functions of expansion bellows are:

• Absorbing Thermal Expansion: This is their most common role, compensating for the growth and shrinkage of pipelines due to temperature changes.
• Compensating for Misalignment: They can accommodate small errors in alignment during installation or shifts that occur over time.
• Dampening Vibration and Noise: Bellows isolate and reduce the transmission of mechanical vibration and noise from pumps, compressors, and engines, protecting sensitive equipment.
• Relieving System Stress: By absorbing movement, they prevent damaging stresses from building up in pipes, equipment nozzles, and supporting structures.

Common Types of Expansion Bellows

Expansion bellows are not a one-size-fits-all solution. Different applications demand different designs. The main types include:

Unreinded Bellows

These are the simplest form, consisting of a series of convolutions made from a thin, flexible metal membrane. They are excellent for absorbing large movements in multiple directions but are limited in their ability to withstand internal pressure. They often require external hardware like limit rods or covers for protection and to contain failure in case of a rupture.

Reinforced Bellows

To overcome pressure limitations, reinforced bellows incorporate external hardware. This category includes:

• Tied Bellows: Equipped with tie rods that absorb pressure thrust, preventing it from being transferred to adjacent equipment. They allow movement in all directions except extension.
• Hinged Bellows: Use hinged hardware to allow angular rotation in a single plane. They are often used in sets of two or three to absorb large amounts of movement in complex piping systems.
• Gimbal Bellows: Utilize a gimbal ring system that permits angular rotation in any plane, making them ideal for absorbing complex multi-plane movements.

Universal Expansion Joints

A universal expansion joint consists of two bellows sections connected by a center spool pipe. This design is highly effective at absorbing large lateral movements (side-to-side) and a combination of lateral and axial movements. They are a versatile solution for challenging applications.

Pressure Balanced Bellows

These are specialized bellows designed to absorb movement without generating additional pressure thrust forces on the equipment. They use an intricate arrangement of two bellows and a balancing chamber. This is critical for protecting sensitive equipment like turbines and pumps where even small additional forces could cause misalignment or failure.

Key Materials and Construction

The performance and longevity of an expansion bellow are directly tied to its material and construction quality. Bellows are manufactured from a wide range of materials to suit different media and environmental conditions.

• Stainless Steels (304, 316L, 321): The most common choice due to their excellent corrosion resistance, high strength, and good fatigue life. 316L is particularly popular for its superior resistance to chlorides and other corrosives.
• High-Temperature Alloys (Inconel 625, Incoloy 800/825, Hastelloy): Used in extreme temperature applications, such as in gas turbine exhausts, aerospace, and chemical processing with highly corrosive elements.
• Exotic Alloys: For the most aggressive chemical environments, alloys like titanium, tantalum, or zirconium may be used, often as a cladding over a less expensive base metal.

Construction methods are equally important:

• Hydroforming: A common method where a metal tube is expanded into a mold using high internal water pressure to form the convolutions.
• Rolling: Metal discs are welded together and then rolled to create the convolutions.
• Pneumatic Forming: Similar to hydroforming but uses compressed air, often for smaller bellows.
• Electropolishing: A finishing process used for bellows in the food, beverage, and pharmaceutical industries to create a smooth, easy-to-clean surface that prevents bacterial growth.

Critical Applications Across Industries

The versatility of expansion bellows makes them indispensable in nearly every sector of industry.

Power Generation

In both traditional fossil fuel plants and modern nuclear facilities, bellows are used in critical systems including turbine exhaust lines, boiler feedwater systems, and flue gas desulfurization units. They manage the immense thermal cycles and vibrations inherent in power production.

Chemical and Petrochemical Processing

Refineries and chemical plants rely on bellows to handle aggressive chemicals, high pressures, and extreme temperatures within complex piping networks, ensuring safe and continuous operation.

HVAC and Building Services

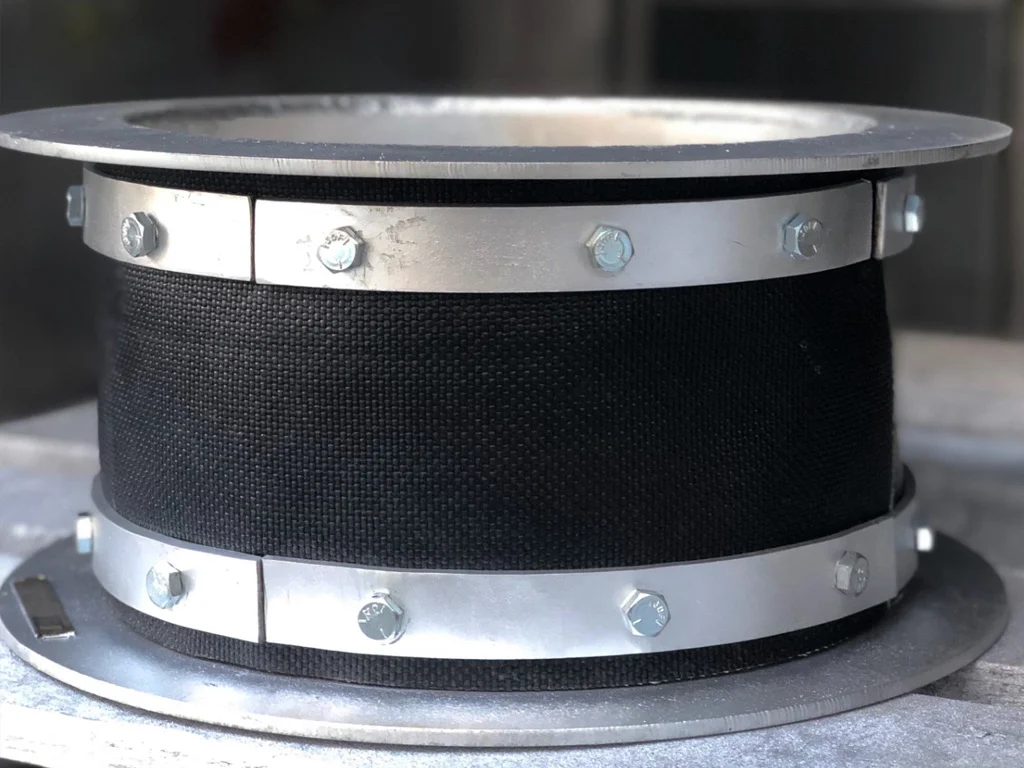

Large commercial buildings use expansion joints in heating, ventilation, and air conditioning (HVAC) systems. They accommodate thermal movement in long duct runs and connect to fans and chillers to isolate vibration and noise, ensuring occupant comfort.

Aerospace and Defense

Metal bellows are used in a multitude of aerospace applications, from flexible seals in jet engines and rocket propulsion systems to sensing elements in instrumentation and actuators.

Semiconductor Manufacturing

Ultra-pure processes in semiconductor fabs require specially polished and cleaned bellows to handle high-purity gases and chemicals without contamination.

Selection, Installation, and Maintenance: Best Practices

Choosing the wrong bellow is a recipe for failure. Proper selection involves a detailed analysis of several parameters:

1. Movement Capabilities: The total amount and type of movement (axial, lateral, angular) the bellow must absorb.
2. Pressure Rating: The maximum internal and external (vacuum) pressure the bellow will experience.
3. Temperature Range: The operating temperature, including any cycling, which affects material choice.
4. Media Compatibility: The chemical composition of the fluid or gas being conveyed dictates the material selection to avoid corrosion.
5. Life Cycle Requirements: The number of movement cycles the bellow must endure before fatigue failure.

Installation is just as critical. Bellows must be installed according to the manufacturer’s instructions, with proper alignment and without twisting or stretching beyond their limits. They are not designed to support the weight of the pipeline, so adequate guiding and support are essential.

Finally, a regimen of regular inspection and maintenance can prevent unexpected failures. Look for signs of corrosion, cracking, deformation, or damage to the external hardware. For critical applications, periodic replacement on a scheduled basis is often more cost-effective than an unplanned shutdown.

Conclusion

Expansion bellows may be hidden components, but their role is undeniably front and center in ensuring the safety, reliability, and efficiency of countless industrial systems. From the power that lights our homes to the chemicals that form the basis of modern products, these flexible marvels work silently to manage the powerful forces of nature and industry. Understanding their function, types, and care is not just an engineering concern—it is a fundamental aspect of maintaining the infrastructure that supports our modern world. When specified, installed, and maintained correctly, expansion bellows provide a long and dependable service, proving that the most flexible link is often the strongest.
